har 001.png

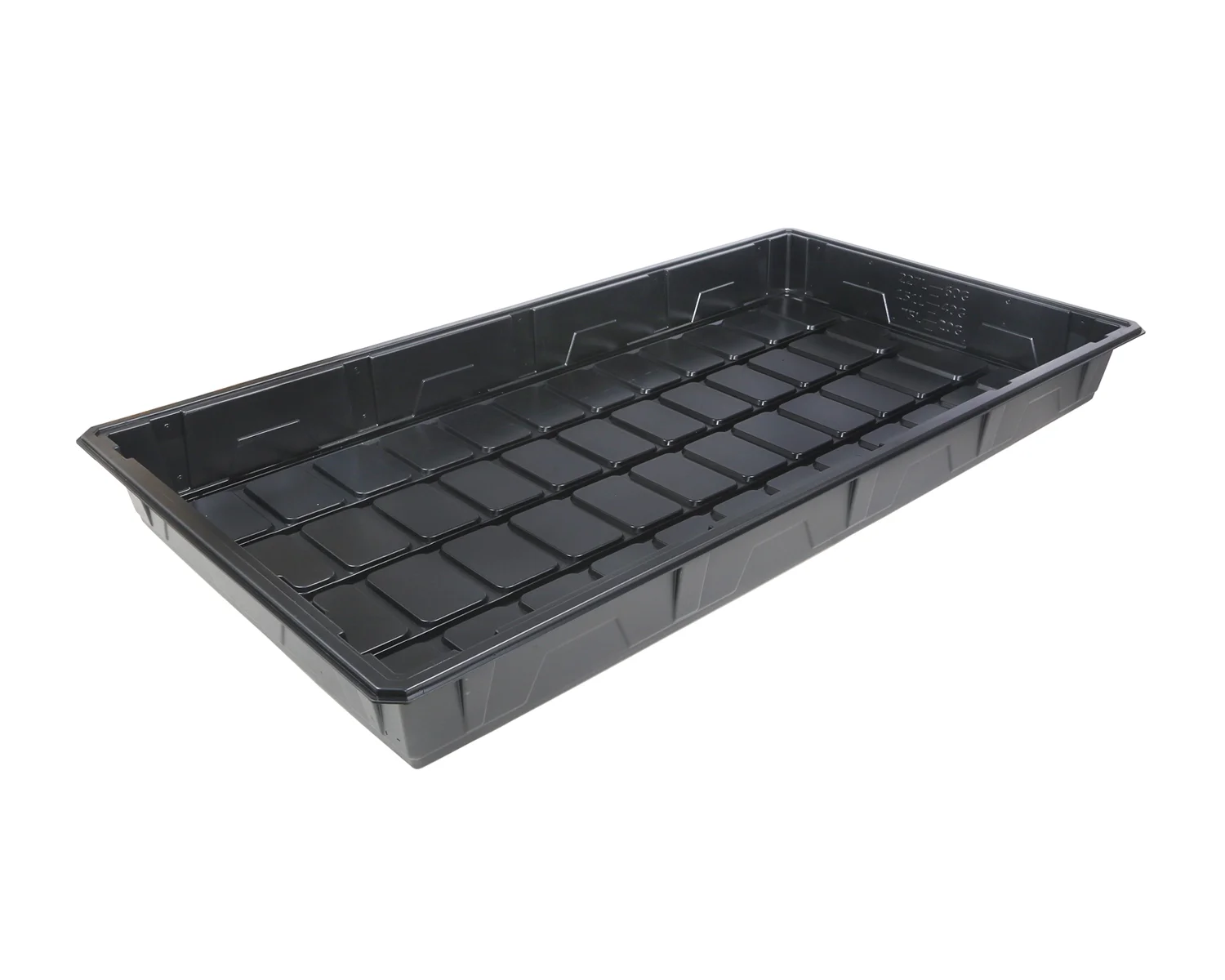

 3' x 6' tray.

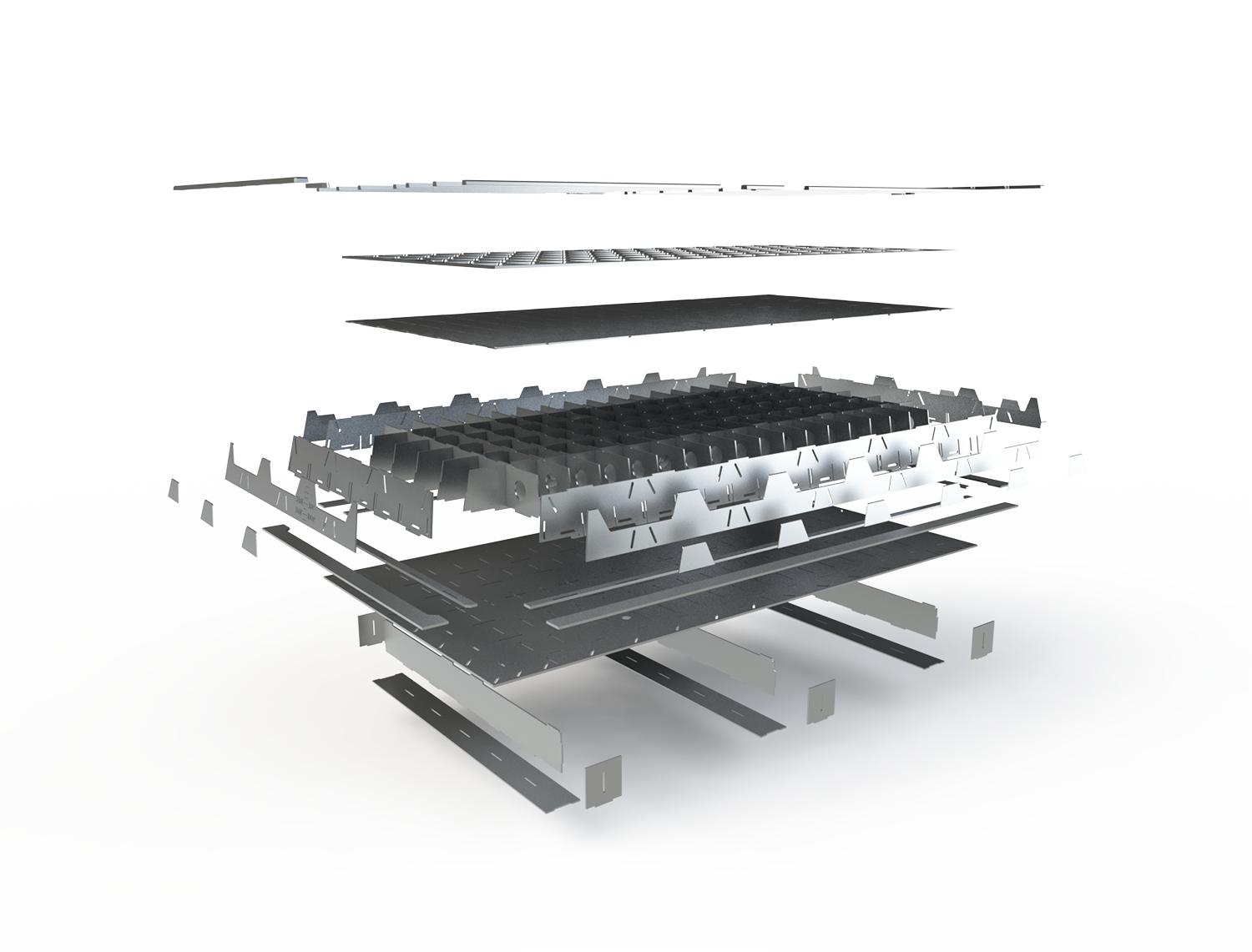

 Exploded view of aluminum tooling, all pieces interlocked and were welded together to create a low cost, high performing mold.
har 002.png

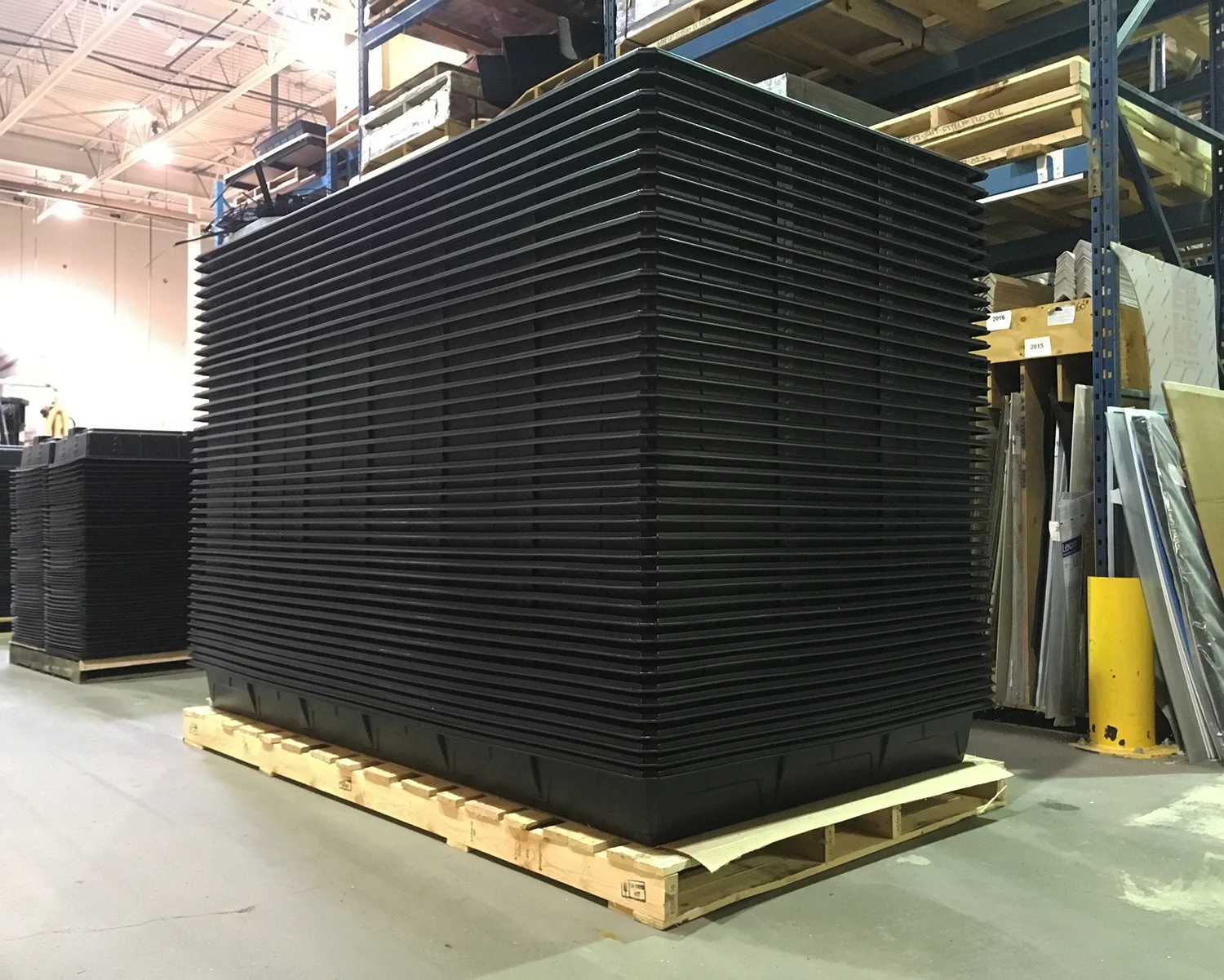

 Stack-ability for shipping was important to Harvester, the newly designed trays met the goal of 40 per pallet.
har 004.jpg

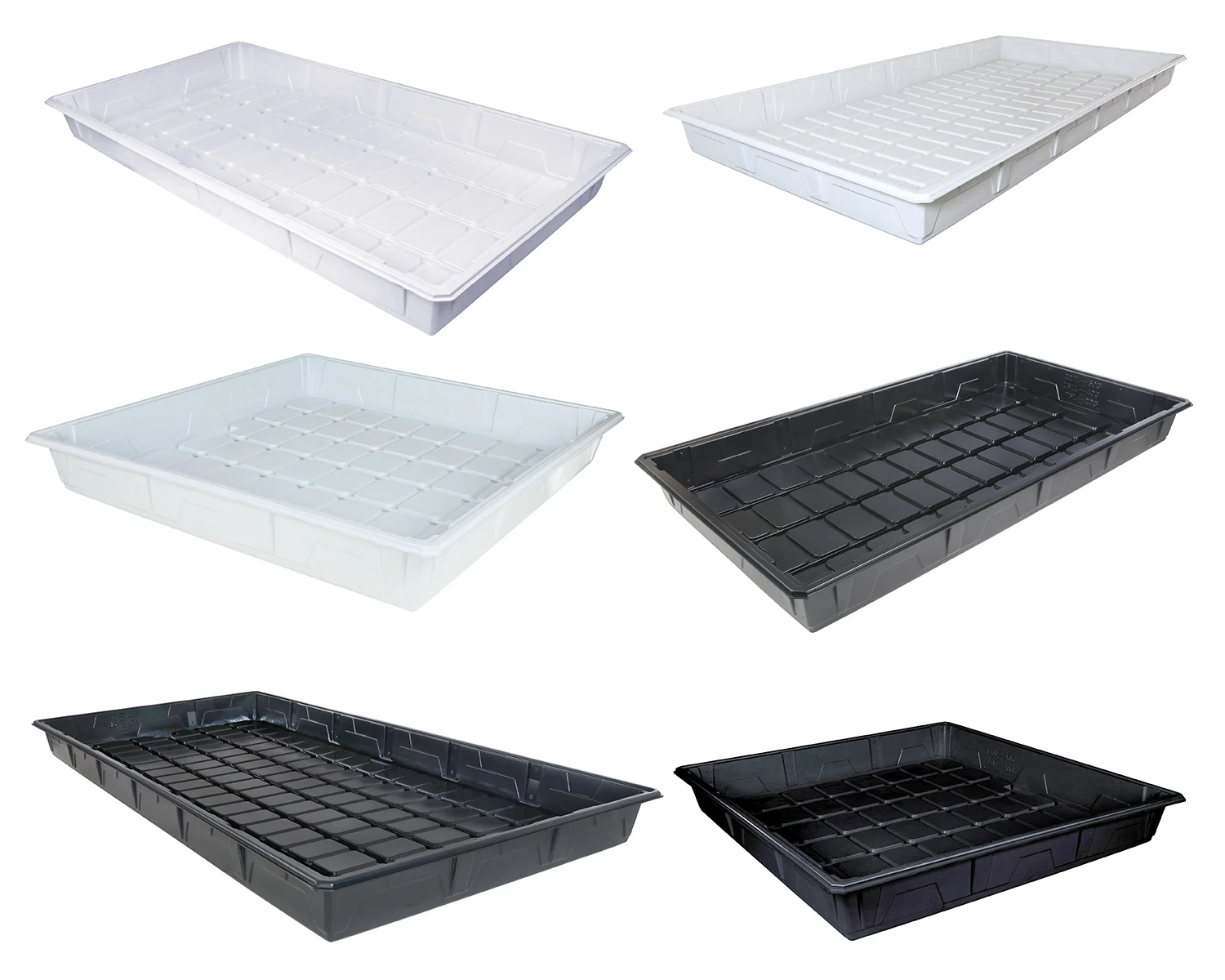

 Multiple models have been created by modifying the dimensions of the original tooling design.
